Gulfstream G150

G150

Gulfstream · 2006 – 2017

3,000 NM

Range

470 kts

Cruise

8

Passengers

3D

Overview / 01

Key Facts

The Gulfstream G150 is a medium jet manufactured by Gulfstream between 2006 and 2017.
The Gulfstream G150 is powered by two Honeywell TFE 731-40AR engines, resulting in an hourly fuel burn of 192 Gallons per Hour.
Capable of cruising at up to 470 knots, the Gulfstream G150 can fly non-stop for up to 3000 nautical miles.
The aircraft can carry up to 8 passengers.
The Gulfstream G150 has an estimated hourly charter price of $4000, with a new list price of $16 million at the time of manufacture.

History / 02

Overview & History

The wide-cabin high-speed Gulfstream G150 was designed, developed, and certified in a joint effort between Israel Aircraft Industries (IAI) and Gulfstream Aerospace. The Gulfstream G150 lineage began with the Astra 1125, Astra SP, Astra SPX (1986 – 2002) produced by IAI, and then Gulfstream acquired the production line and rebranded the line to the Gulfstream G100.

The Astra SPX/Gulfstream 100 had the greatest speed and longest range compared to its competitors but not the cabin comfort needed for a US transcontinental mid-cabin business jet. Accordingly, Gulfstream decided to enlarge the cabin in the G100 from 304 cubic feet to 521 cubic feet in the G150.

As of September 2016, 36% of the Gulfstream G150 aircraft were purchased pre-owned by their current owners, the other 64% new. 5% are currently for sale with all of those (100%) under an exclusive broker agreement.

When for sale, the average number of days on the market is 280.

The Gulfstream G150 began production in 2005 and is still being produced presently. A total of 123 Gulfstream G150 aircraft have been manufactured with 119 of them in operation, one retired and 3 in various stages of the completion process including interior installation and exterior paint.

Gulfstream Aerospace recently announced it has sold the last Gulfstream G150, marking the end of the mid-size aircraft more than 10-year production run. The final G150 will be delivered to a customer in mid-2017.

In Service

123

Total Built

126

Production

2006 – 2017

Performance / 03

Gulfstream G150 Performance

Range

3,000NM

Cruise Speed

470kts

Ceiling

45,000ft

Fuel Burn

192GPH

Range by Configuration

Standard range (typical load)3,000 NM
Full-seat range (8 pax)2,760 NM
Ferry range (no payload)3,130 NM

46 NM per additional passenger

Takeoff Distance

5,000 ft

Landing Distance

2,880 ft

Rate of Climb

3,340 fpm

The aircraft is powered by two Honeywell TFE731-40R turbofan engines each rated at 19.6kN. The engines are pylon mounted on each side of the rear section of the fuselage.

The engine air intakes have a thermal anti-icing system. The aircraft carries a maximum fuel load of 4,581kg in the tanks in the inner and outer wing sections and in the upper and lower tanks in the center fuselage.

Its sleek aerodynamic design is not only elegant in structure and appearance but also supplements its in-the-air capabilities.

As you can imagine, combining powerful engines with state-of-the-art aerodynamic design leads to massive speeds and the G150 never fails to impress. Breaking speed records across the country, the G150 is the absolute leader when it comes to sheer quickness.

Operating at speeds of up to Mach 0.85 and featuring a flight ceiling of 45,000 feet, the G150 soars above hostile weather conditions and commercial airline traffic.

It can take four passengers up to 3,000 nautical miles at long-range cruising speed. This allows the G150 to transport its passengers extremely quickly over continental distances with ease.

It’s can fly farther, faster, and higher than any other aircraft in its class. It is no wonder that the G150 continues to rise in popularity and is continually praised via awards, records, and media recognition.

Comfort / 04

Gulfstream G150 Interior

Toilet Shower Flat Floor Dedicated Bed Baggage Access

Its spacious cabin is as comfortable as possible featuring fully-reclinable, ergonomic seating with armrests, work tables, and 11 windows to provide natural lighting. It is FAA certified for Stage 4 noise standards making noise levels more comfortable both for passengers and those outside the aircraft.

Its cabin dimensions are 17′ 8″ in length, 5’9″ in width, and 5’9″ in height making it larger and more spacious than both most business jets and most jets in its category.

The comfortable interior cabin is not just exclusive to passengers. The interior design styles are based on the operator’s selection of leathers, upholstery fabrics, wood finishes, and floor coverings.

The cabin is fitted with a Honeywell environmental control system and is pressurized to a differential of 0.61bar using engine bleed air.

Cabin Length

17.68ft

Cabin Width

5.81ft

Cabin Height

5.81ft

Cabin Environment

Cabin altitude at cruise7,000 ft

Standard

Pressure differential63.43 psi
Sea-level cabin up to23,000 ft

Noise compliance (dB) — lower is quieter

Lateral91.2 dB / limit 103
Flyover80.7 dB / limit 89
Approach91.9 dB / limit 98

Technology / 05

Cockpit

AvionicsCollins Pro Line 21

The aircraft is equipped with a Rockwell Collins Pro Line21 integrated avionics suite. The flight deck accommodates two crew members and is fitted with a Rockwell Collins EFD-4077 electronic flight information system which provides data to the four 18.4cm display screens.

The dual UNS-1C flight management systems have an integrated global positioning system and Rockwell Collins FCC-4005 autopilot. The navigation systems include dual AHC-85E attitude and heading reference systems, ADC-850C air data systems, VIR-432 navigation markers, DME-442 distance measuring equipment, single automatic direction finder ADF-462, an ALT-55B radio altimeter, a terrain collision avoidance system TCAS-94, a Honeywell EGPWS electronic ground proximity warning system, and a TWR-850 color weather radar.

Engine

Honeywell

TFE731-40AR

Min. Pilots

2

Charter / 06

Gulfstream G150 Charter Cost

Estimated Hourly Charter Rate

$3,600/ hr

Actual rates vary by route, season and operator

This jet is one of the comfortable jets available for charter flights from and to New York, with a wide range of availability in several major aviation markets. The cost to charter this jet starts at around $3,600 an hour.

Hourly charter rates do not include all taxes, fuel, and other fees. Charter costs will vary based on year of make/model, schedule, routing, passenger & baggage totals, and other factors.

Charter rate$3,600 / hr
Hourly ownership$4,307
Hourly fuel$1,807
Maintenance$1,352
Engine overhaul$357
Ground fees$193

Market / 07

Purchase Cost

New List Price

$16,000,000

Avg. Pre-Owned

$6,333,000

Annual Cost

$1,417,212

Charter / hr

$3,600

New vs Pre-Owned

New list price$16,000,000
Avg. pre-owned$6,333,000

Save $9,667,000 (60%) buying pre-owned

Depreciation rate5.91% / year

Hourly Cost Comparison

Charter rate (revenue)$3,600 / hr
Ownership cost (expense)$2,974 / hr

↑ Charter revenue exceeds ownership cost by $626 / hr

The acquisition cost for this jet typically ranges from $15-16 million. The price of a jet depends on the production year; it can also go above the given range if the production is new.

It will cost buyers around $1 million per year which includes fuel, crew members, and maintenance, etc. The price of a pre-owned aircraft can be within $10-12 million.

There are numerous sellers available on various sites.

You can find Gulfstream G150 aircraft for sale here.

Value History

Pre-owned market value over time

$8.3M2017
$4.2M$6.3M$8.3M200620072008200920102011201220132014201520162017

Maintenance Schedule

A Check500 hours - General Inspection (recurring)

Details / 08

In-Depth

Performance / 09

Performance

Performance Specs

Range3,000 NM
Cruise speed470 kts
Long range cruise430 kts
Max altitude45,000 ft
Takeoff distance5,000 ft
Landing distance2,880 ft

Comfort / 10

Comfort

Comfort Specs

Max passengers8
Typical passengers8
Cabin volume596 cf
Baggage capacity80 cf
Est. charter rate$3,600
Avg. pre-owned$6,333,000

Details / 11

Weights

Weights Specs

MTOW26,100 lbs
Max ramp weight26,250 lbs
Max landing weight21,700 lbs
Max payload2,400 lbs
Available fuel10,300 lbs

Details / 12

Dimensions

Dimensions Specs

Cabin length17.68 ft
Cabin width5.81 ft
Cabin height5.81 ft
Exterior length56.69 ft
Wingspan55.61 ft
Exterior height19.09 ft

Details / 13

Power

Power Specs

Engine manufacturerHoneywell
Engine modelTFE731-40AR
Thrust output4,420 lbs
Total thrust8,840 lbs
Fuel burn192 GPH
Production2006 – 2017

Range / 14

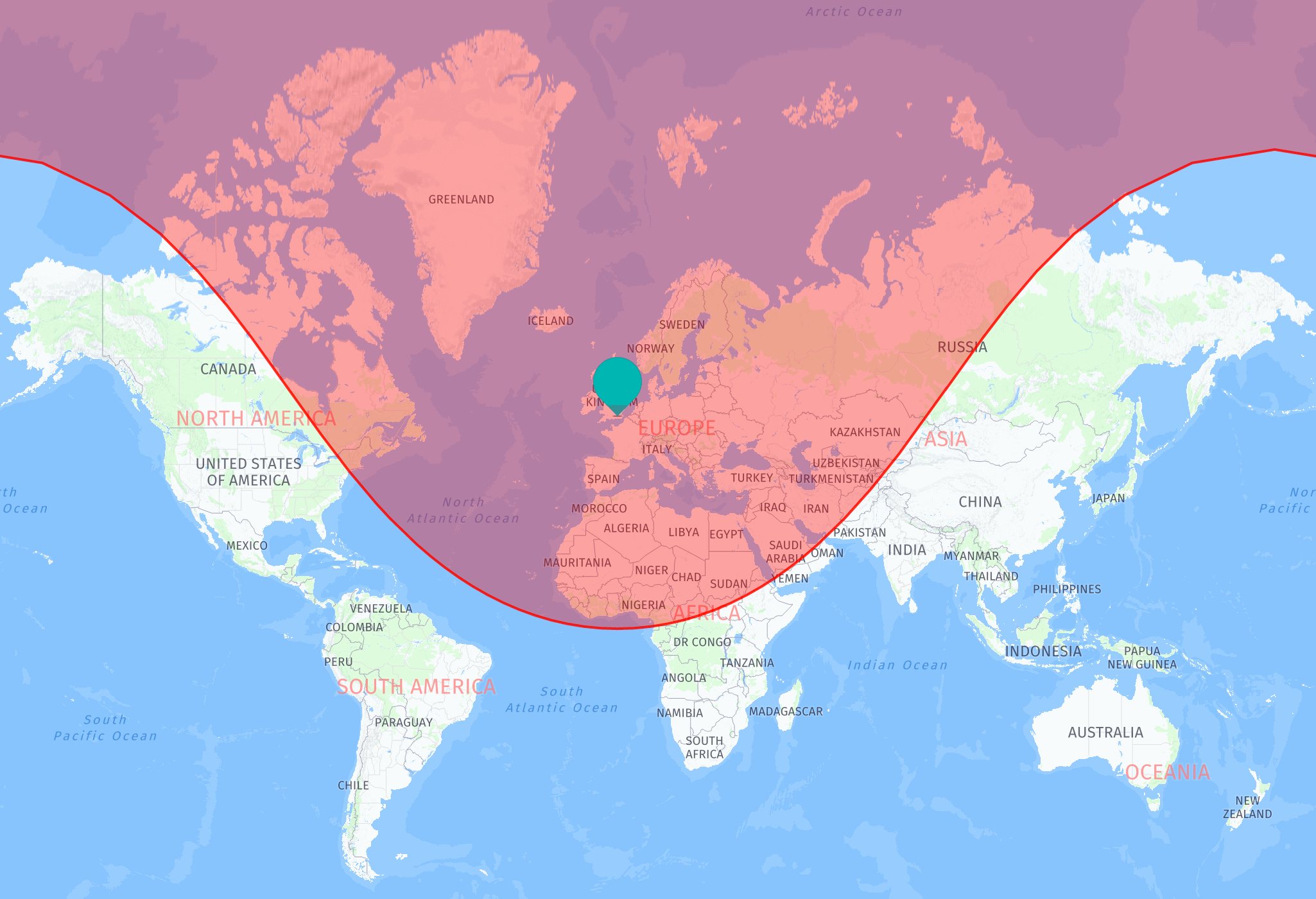

Range Map

Gulfstream G150 Range Map
